Avenger R8RS Complete Bike
This is a BUILD to ORDER complete bike listing. Whitepaper for R8RS available upon request.
-Get in touch with us for your free consultation and we will walk you through the order process.
Avenger's parent company Hongfu Sports Equipment is the OE manufacturer for many "western" brands ridden in the world tour.

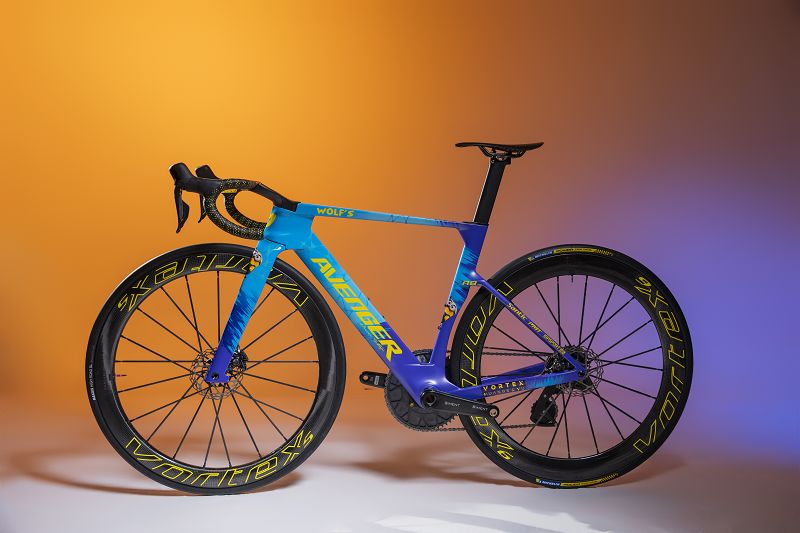

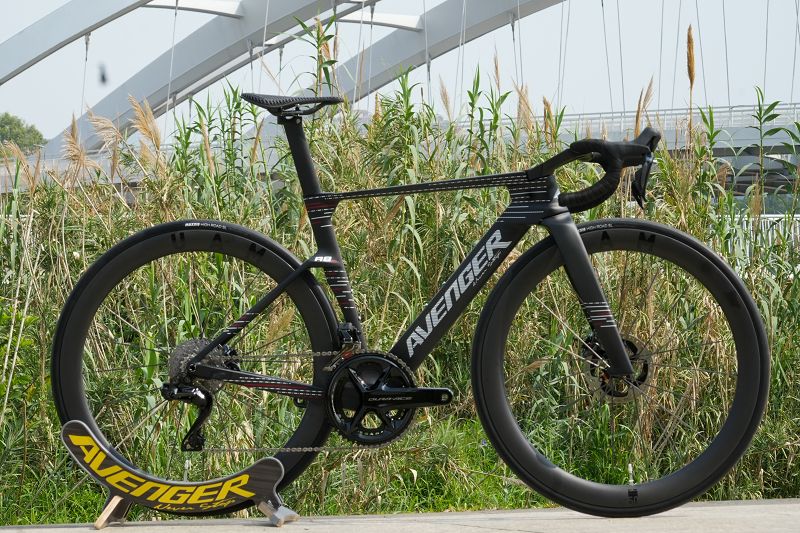

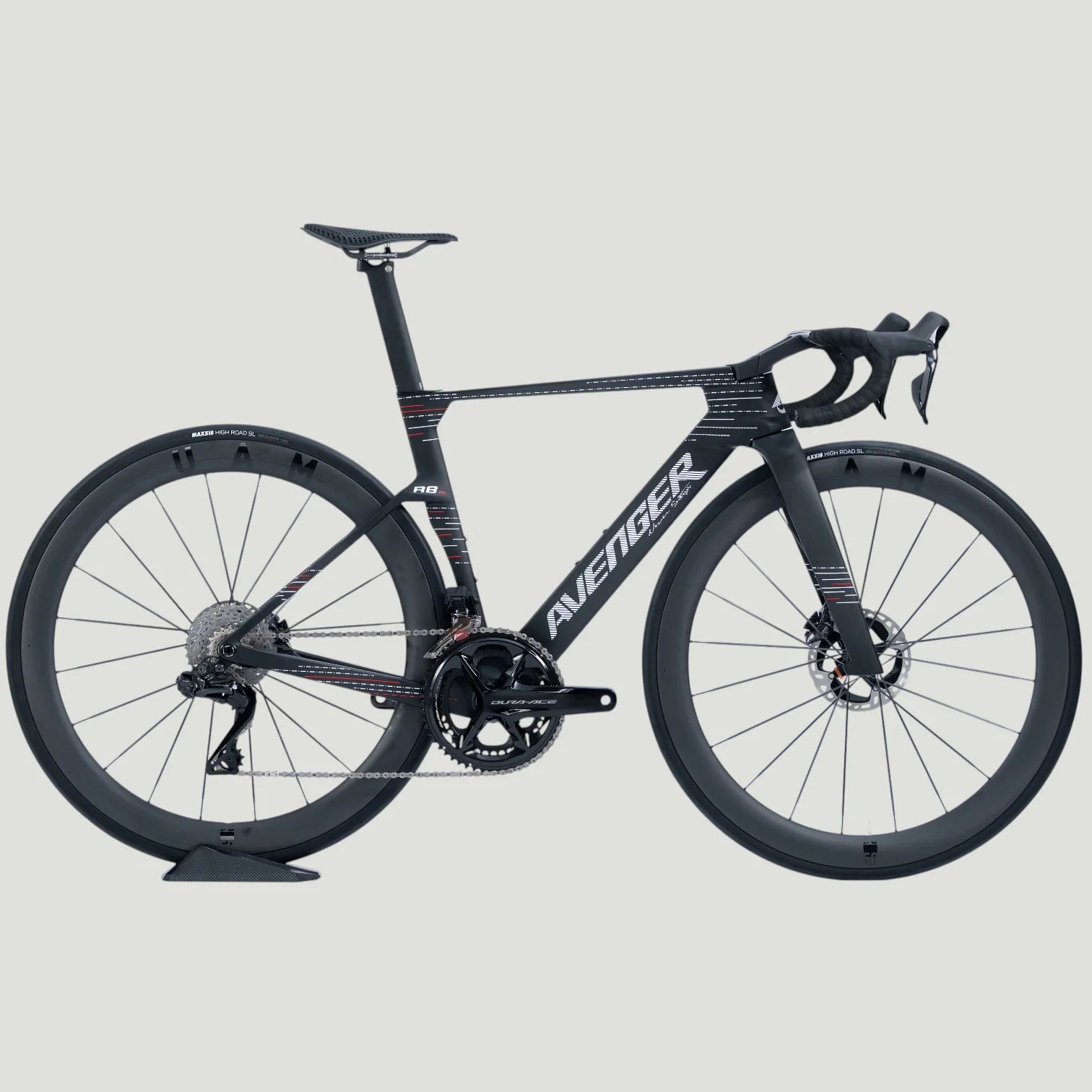

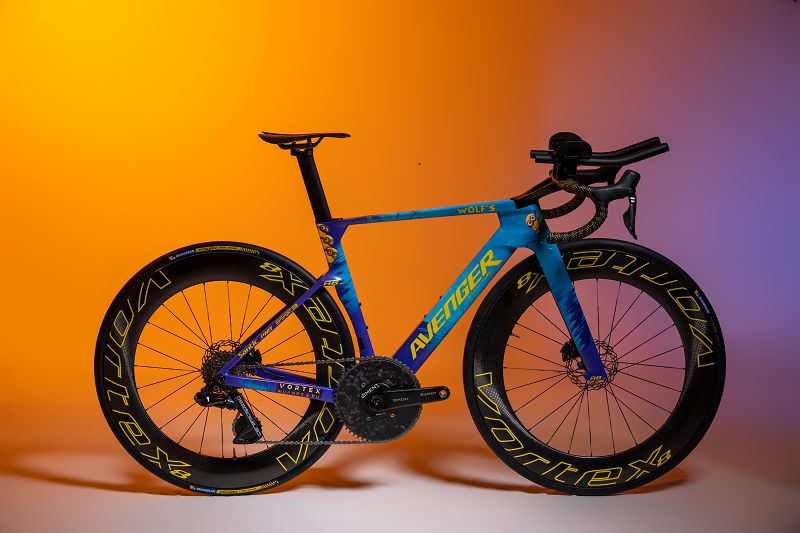

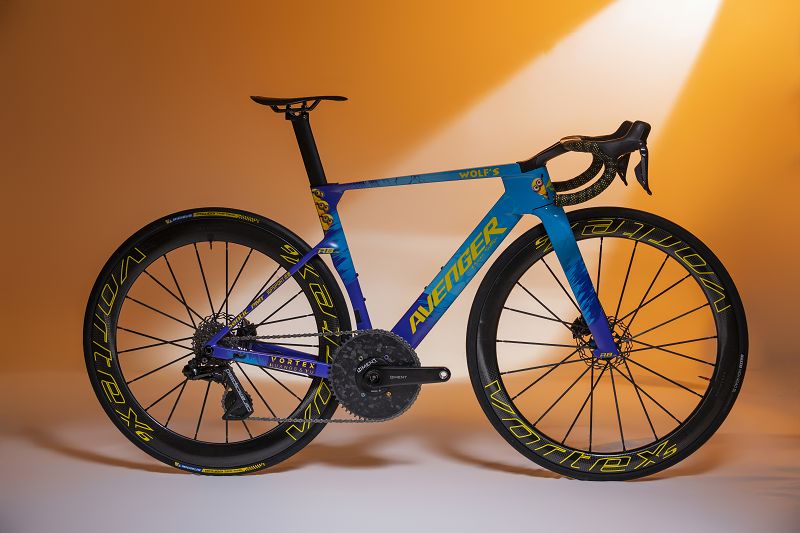

The Avenger R8RS Complete Bike turns the UCI-approved R8RS aero frameset into a ready-to-race road machine. Every build features the premium high modulus carbon frame layup with the Y shaped riser bar and gives the customer the option of adding on the detachable TT bars. Spec your build out with a choice of Shimano 105, Ultegra or Dura-Ace Di2 in 12spd.
Avenger R8RS Complete Bike — Features & Benefits
- UCI-approved aero platform: the R8RS frame is on the UCI approved list — race it anywhere road bikes race.

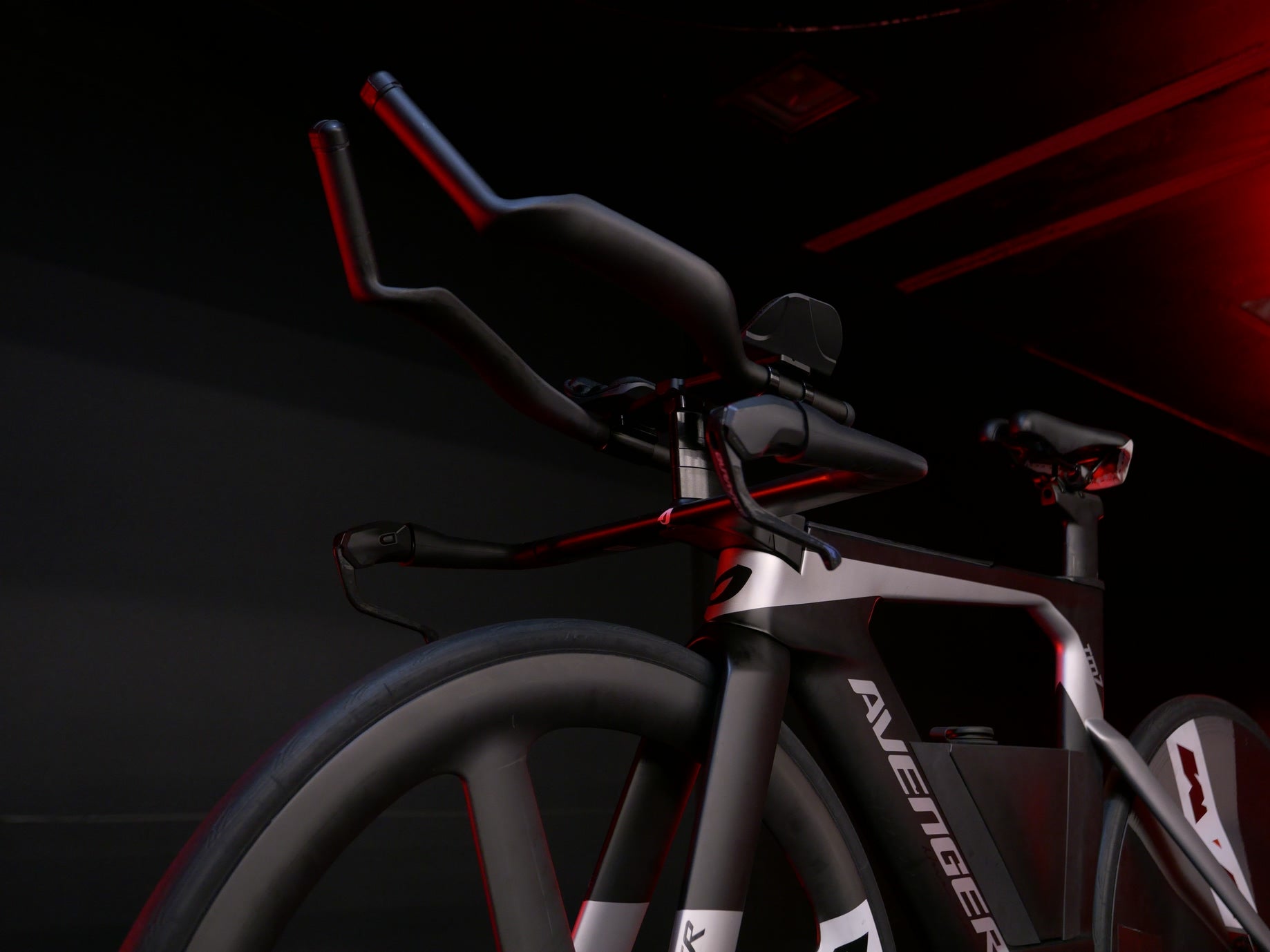

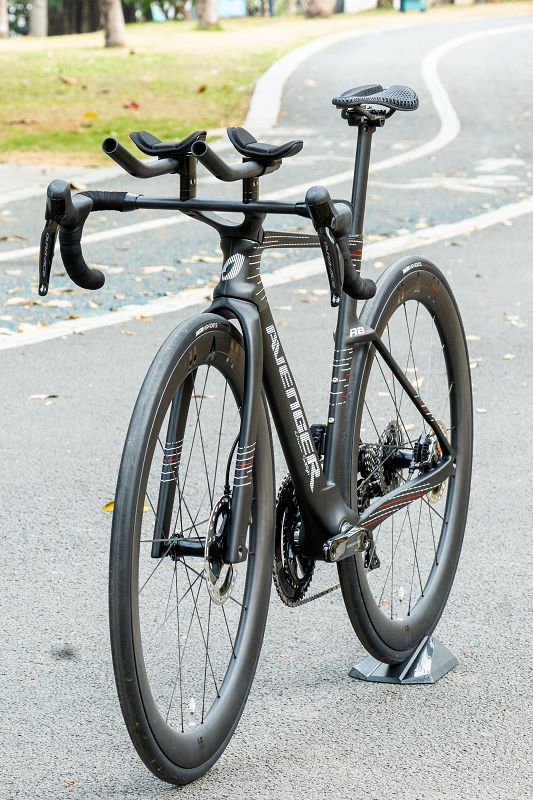

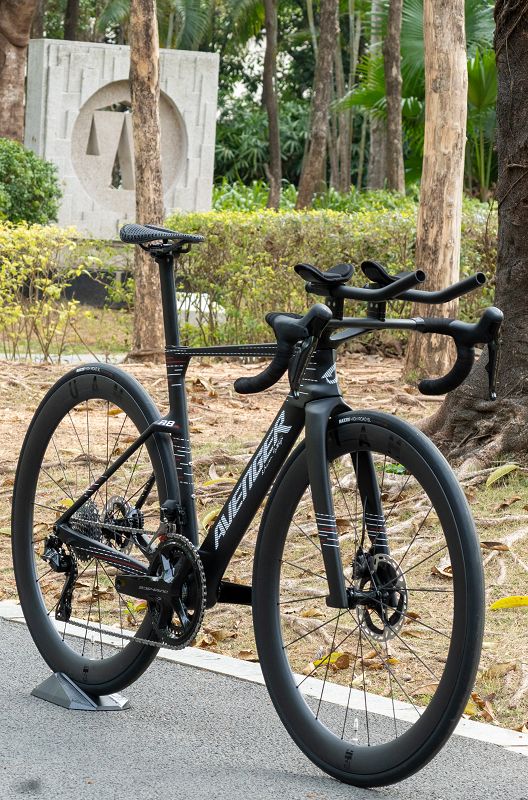

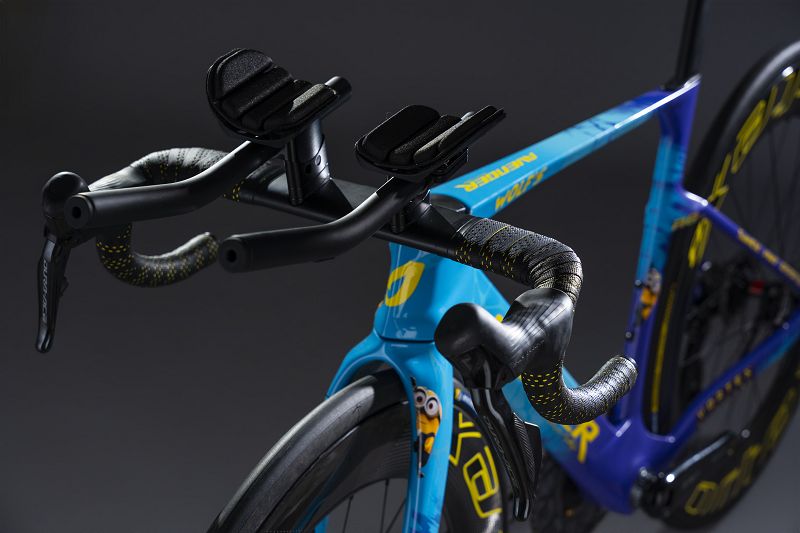

- Y-shape handlebar: ergonomic riser design that relieves shoulder and neck strain on long rides, and accepts clip-on aero bars with no cockpit swap.
- UAM 50mm carbon wheels: carbon-spoked 50mm deep aero wheelset
- Three Di2 build tiers: same frame, wheels and finishing kit — only the groupset changes.
- Modern standards: T47 bottom bracket, UDH hanger, 142/100×12 mm thru-axles, flat-mount discs, titanium frame bolts.
- Race-ready finishing kit: Maxxis High Road SL, 3D-printed carbon-rail saddle, carbon cage, ultra-light bar tape/
Avenger R8RS Complete Bike — Build Options
Shimano 105 Di2 (R7170) — base price
- Shifting: 105 Di2 2×12, FC-R7100 52-34T, CS-R7101 11-34T
- Brakes: BR-R7170 hydraulic disc, SM-RT70 140 mm rotors
- Wheels: UAM 50 mm carbon-spoke clinchers
Shimano Ultegra Di2 (R8170) — +$800
- Shifting: Ultegra Di2 2×12, FC-R8100 52-36T, CS-R8100-12 11-34T
- Brakes: BR-R8170 hydraulic disc, SM-MT800 160 mm rotors
- Wheels: UAM 50 mm carbon-spoke clinchers
Shimano Dura-Ace Di2 (R9270) — +$2900
- Shifting: Dura-Ace Di2 2×12, FC-R9200 52-36T, CS-R9200-12 11-34T
- Brakes: BR-R9270 hydraulic disc, SM-RT900 160 mm rotors
- Wheels: UAM 50 mm carbon-spoke
Avenger R8RS Complete Bike — Specifications
Frame Platform

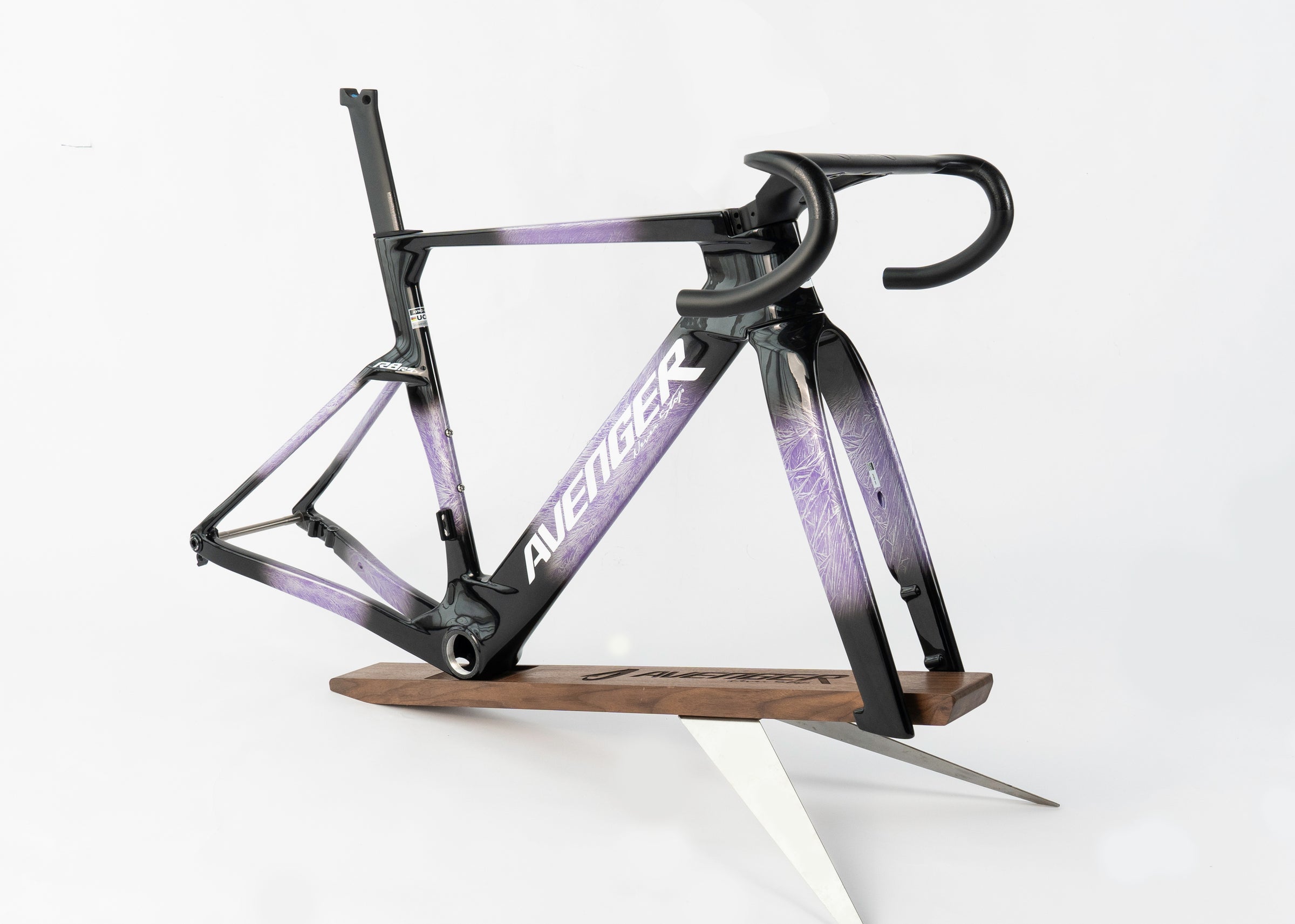

- Frame: Avenger R8RS aero, Toray T800 + T1000 carbon
- Fork: Avenger aero disc road fork
- Routing: fully internal
- BB: T47
- Hanger: UDH
- Axles: 142×12 / 100×12 mm
- Frame bolts: titanium
Cockpit / Wheels / Tires

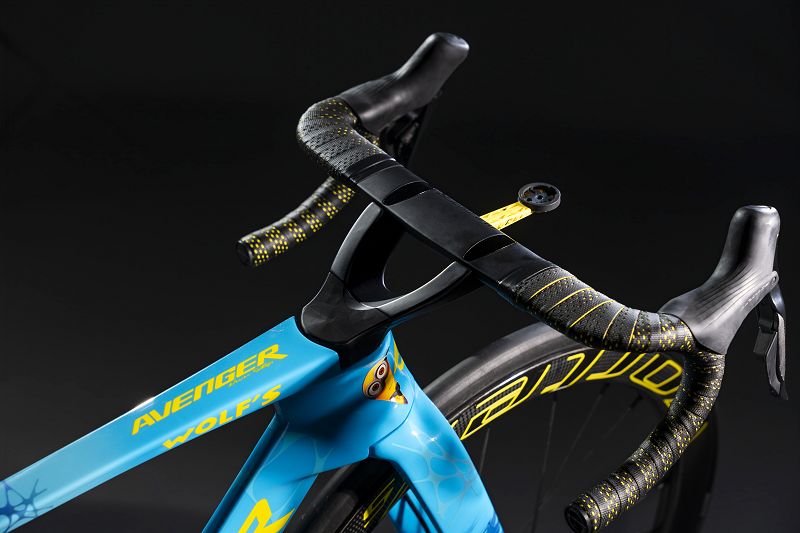

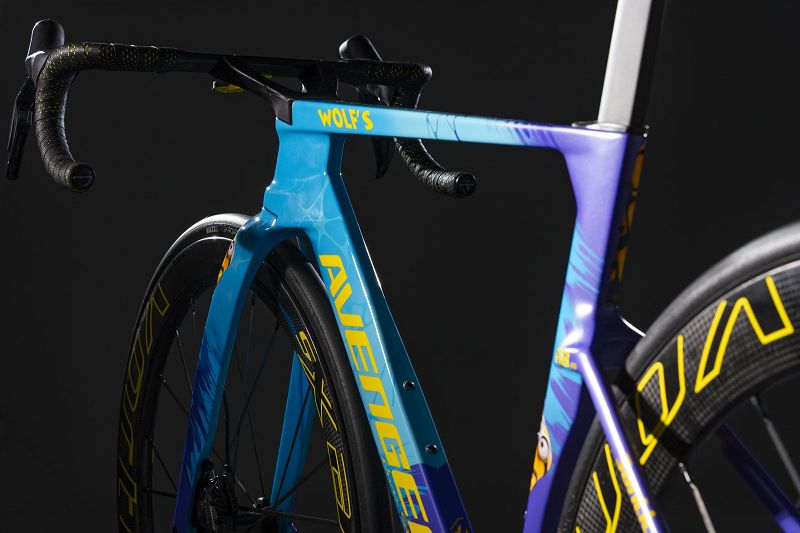

- Handlebar: R8RS Y-shape riser (clip-on aero-bar compatible)
- Seatpost: R8RS dedicated aero, 400mm
- Wheels: UAM 50 mm clincher, carbon spokes, 12s disc hubs
- Tires: Maxxis High Road SL
Available Sizes & Finish
- Sizes: 49 / 52 / 54 / 56 / 58 cm
- Finish: UD carbon
- Saddle: 3D-printed, carbon rails
- Warranty: 2-year frameset warranty
Avenger R8RS Complete Bike — Geometry
| Size | 49 | 52 | 54 | 56 | 58 |
|---|---|---|---|---|---|
| Recommended Height (cm) | 155–168 | 168–175 | 172–182 | 180–188 | 185–195 |
| Seat Tube / S (mm) | 456 | 480 | 502 | 525 | 548 |
| Seat Angle / SC (°) | 74.5 | 74 | 73 | 73 | 73 |
| Top Tube / O (mm) | 509.5 | 525 | 550 | 564.7 | 580.5 |
| Head Tube / HS (mm) | 97 | 115 | 137 | 158 | 181 |
| Head Angle / HC (°) | 71.7 | 72.5 | 72.5 | 73.3 | 73.3 |
| Fork Length / F (mm) | 372 | 372 | 372 | 372 | 372 |
| Fork Offset / OT (mm) | 45 | 45 | 45 | 45 | 45 |
| Wheelbase / WB (mm) | 958.5 | 962.9 | 978.9 | 986.4 | 1002 |
| Front Center / FC (mm) | 564.5 | 569 | 584.2 | 591.6 | 607.1 |
| Rear Center / RC (mm) | 405 | 405 | 405 | 405 | 405 |
All dimensions in mm unless noted (°). Manufacturer-published chart — same geometry as the R8RS Aero Frameset.
