Avenger R8RS Frameset & Cockpit

Whitepaper & full colourway catalogue for R8RS available upon request.

-Get in touch with us for your free consultation and we will walk you through the order process.

Avenger's parent company Hongfu Sports Equipment is the OE manufacturer for many "western" brands ridden in the world tour.

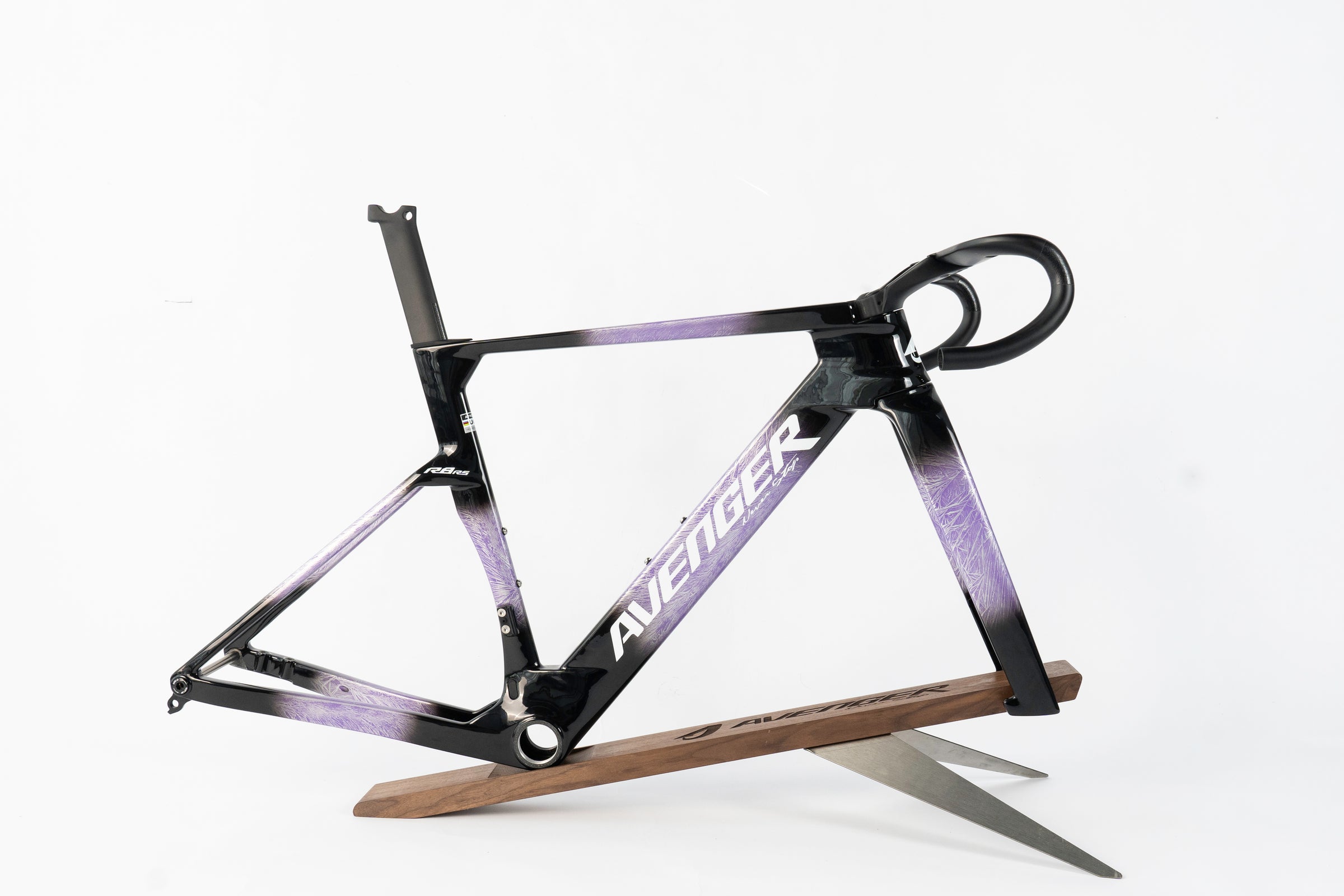

The Avenger R8RS  turns the UCI-approved R8RS aero frameset into a ready-to-race road machine. The frame features the premium high modulus carbon frame layup with the Y shaped riser bar and gives the customer the option of adding on the detachable TT bars.

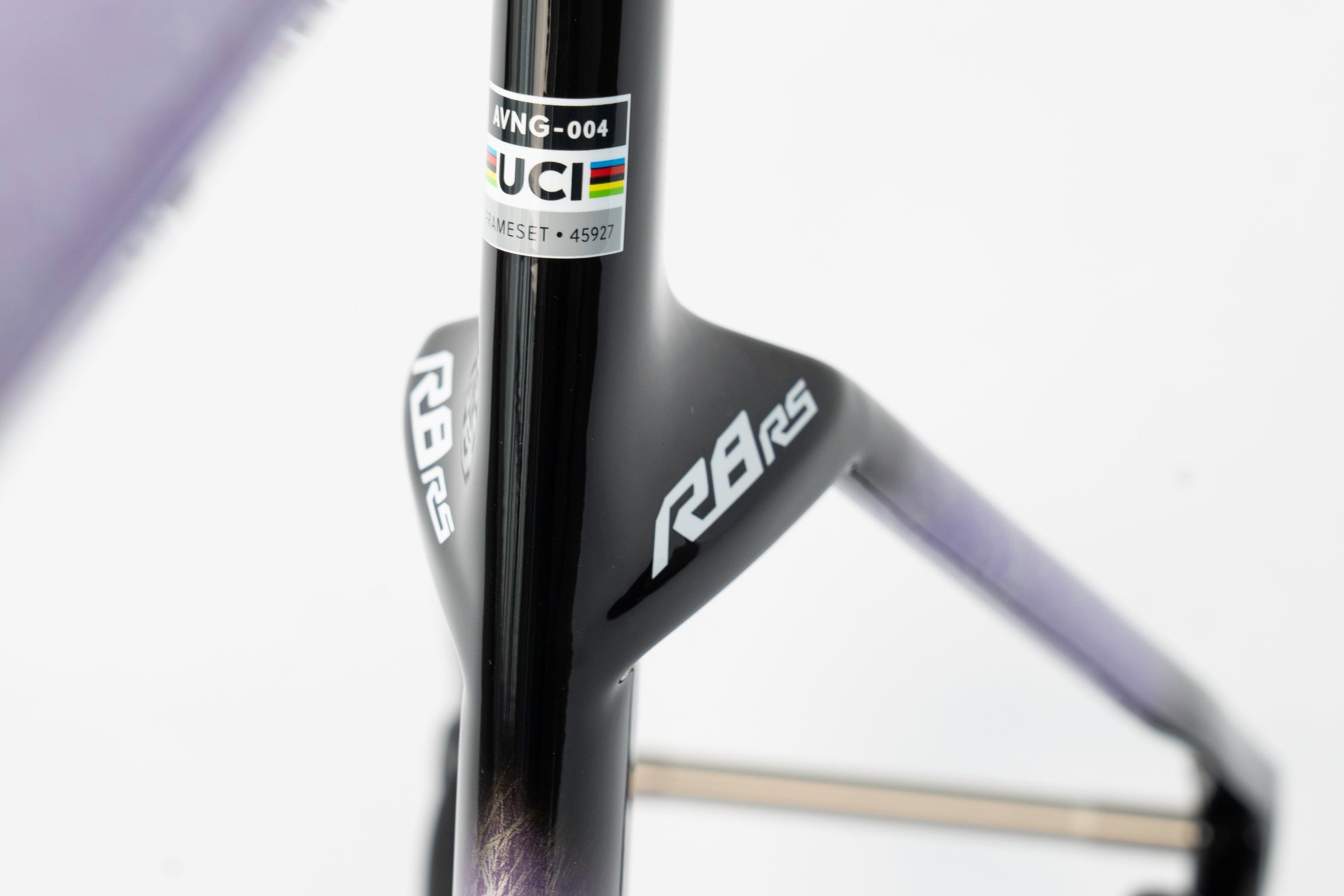

• UCI-approved aero platform: the R8RS frame is on the UCI approved list — race it anywhere road bikes race.

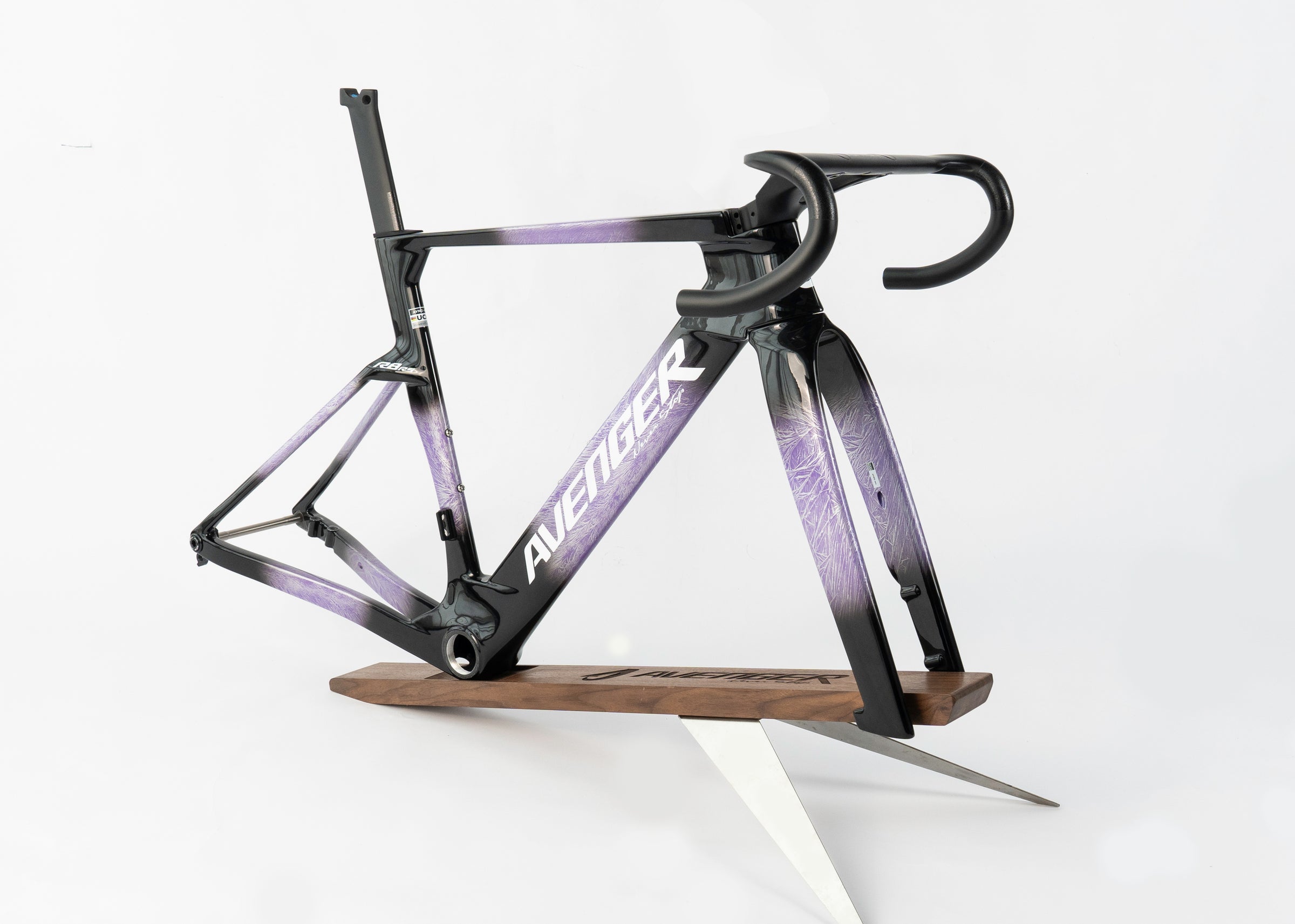

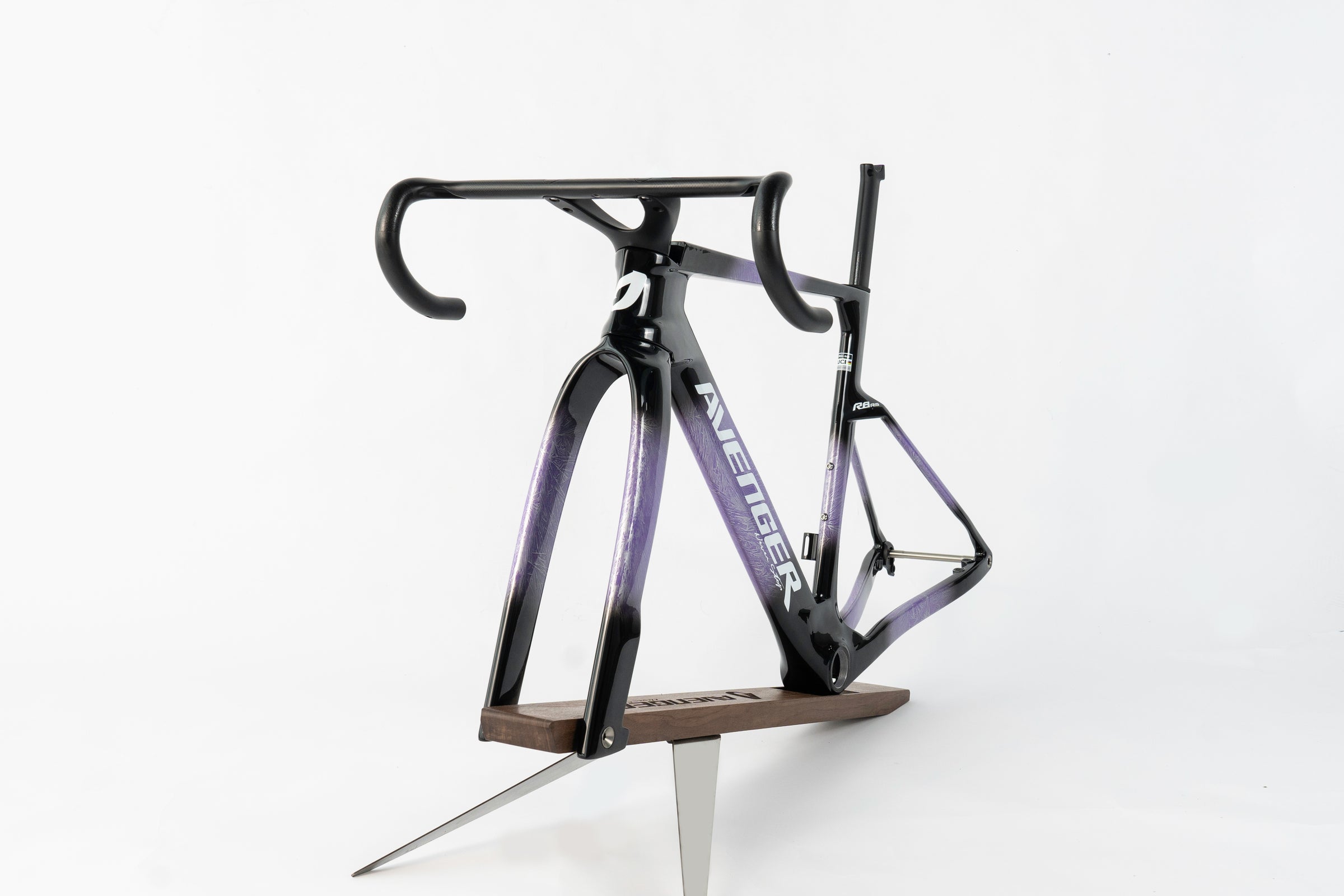

• Y-shape handlebar: ergonomic riser design that relieves shoulder and neck strain on long rides.

• Optional TT bar add on, direct bolt on to the Y-shaped riser bar

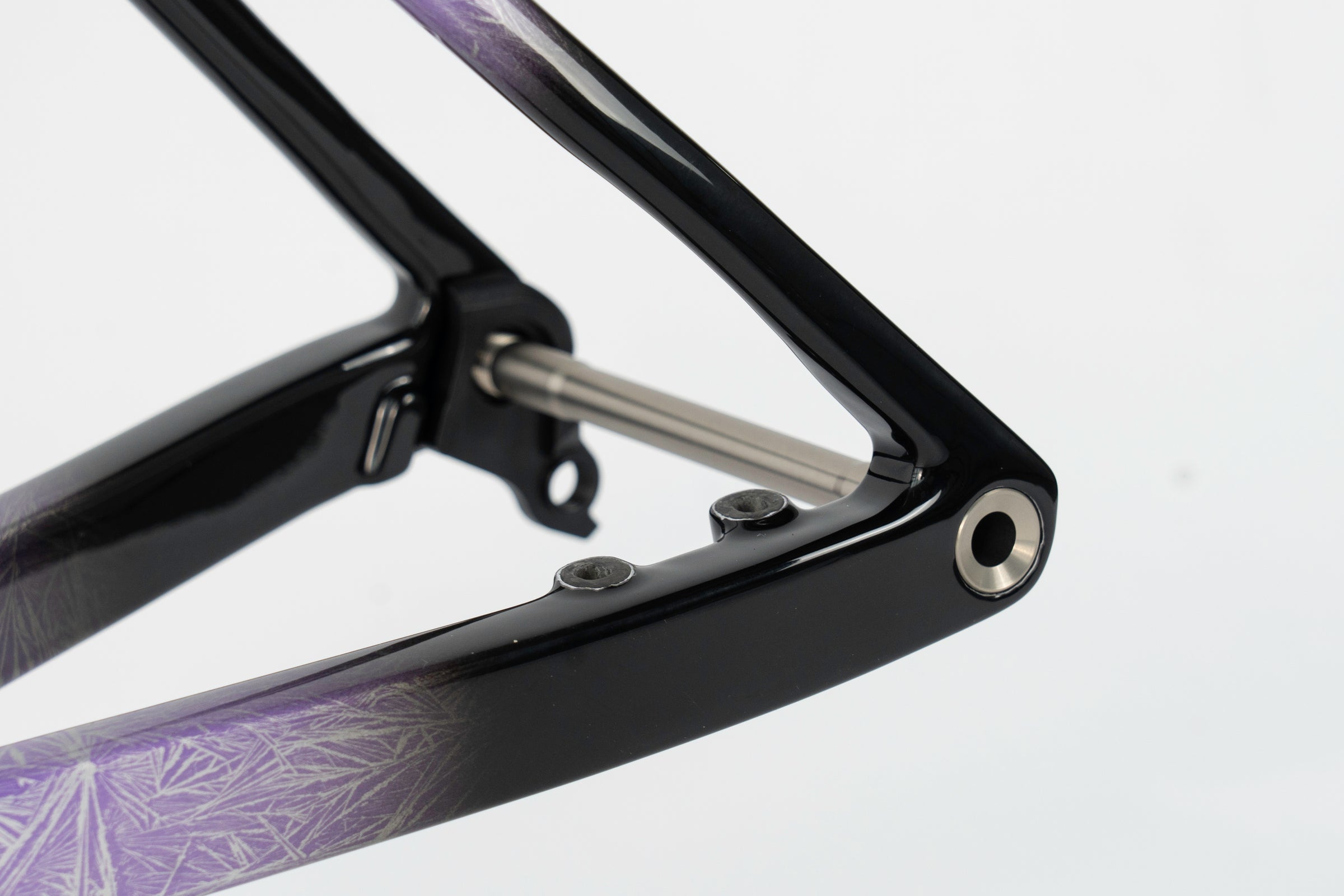

• Modern standards: T47 bottom bracket, UDH hanger, 142/100×12 mm thru-axles, flat-mount discs, titanium frame bolts.


Frame Specifications

• Frame: Avenger R8RS aero, Toray T800 + T1000 carbon
• Fork: Avenger aero disc road fork
• Routing: fully internal
• BB: T47
• Hanger: UDH
• Axles: 142×12 / 100×12 mm
• Frame bolts: titanium

• Sizes: 49 / 52 / 54 / 56 / 58 cm
• Finish: UD carbon
• Saddle: 3D-printed, carbon rails
• Warranty: 2-year frameset warranty

Avenger R8RS Complete Bike — Geometry

Size	49	52	54	56	58
Recommended Height (cm)	155–168	168–175	172–182	180–188	185–195
Seat Tube / S (mm)	456	480	502	525	548
Seat Angle / SC (°)	74.5	74	73	73	73
Top Tube / O (mm)	509.5	525	550	564.7	580.5
Head Tube / HS (mm)	97	115	137	158	181
Head Angle / HC (°)	71.7	72.5	72.5	73.3	73.3
Fork Length / F (mm)	372	372	372	372	372
Fork Offset / OT (mm)	45	45	45	45	45
Wheelbase / WB (mm)	958.5	962.9	978.9	986.4	1002
Front Center / FC (mm)	564.5	569	584.2	591.6	607.1
Rear Center / RC (mm)	405	405	405	405	405

All dimensions in mm unless noted (°). Manufacturer-published chart — same geometry as the R8RS Aero Frameset.
